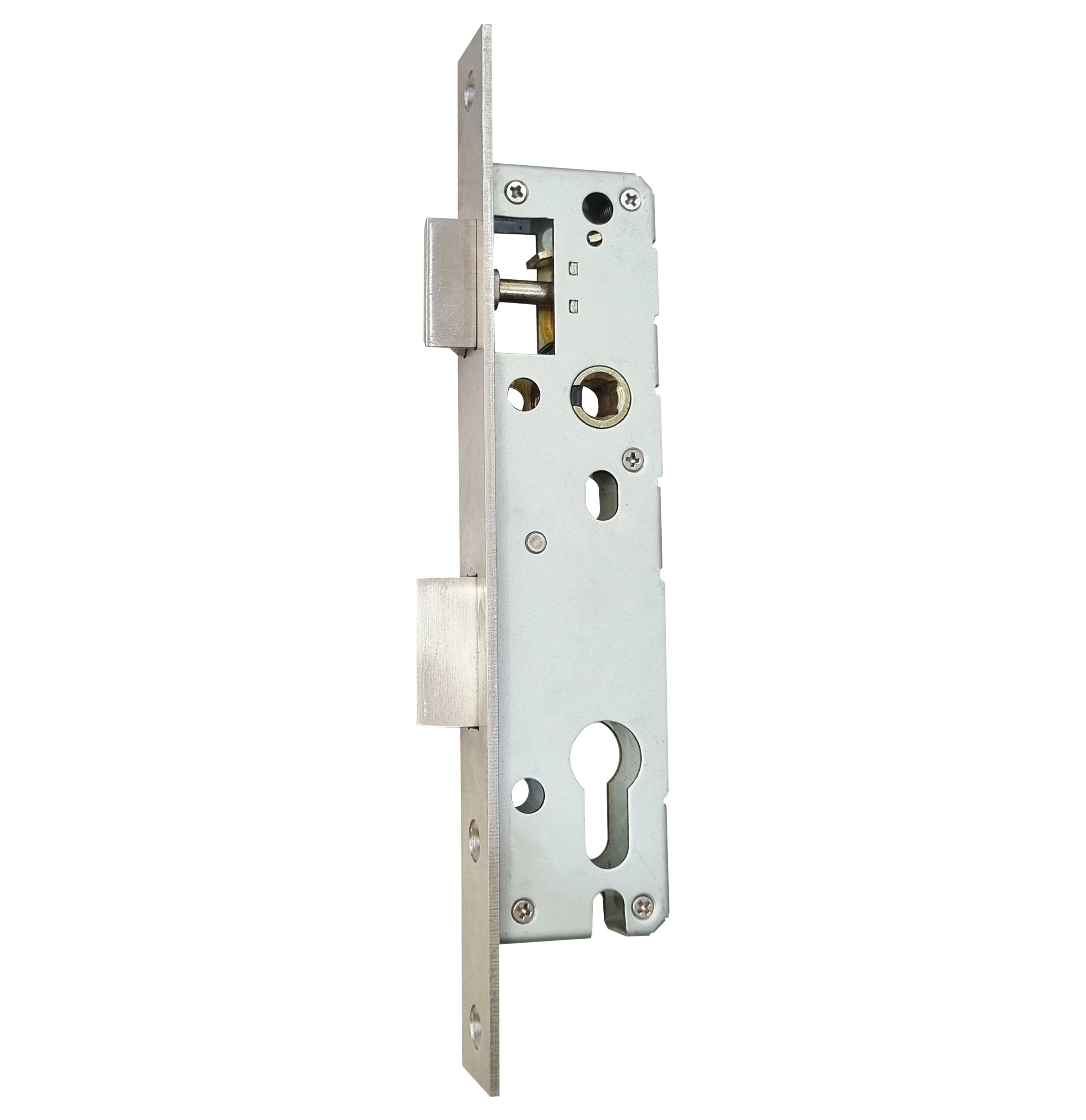

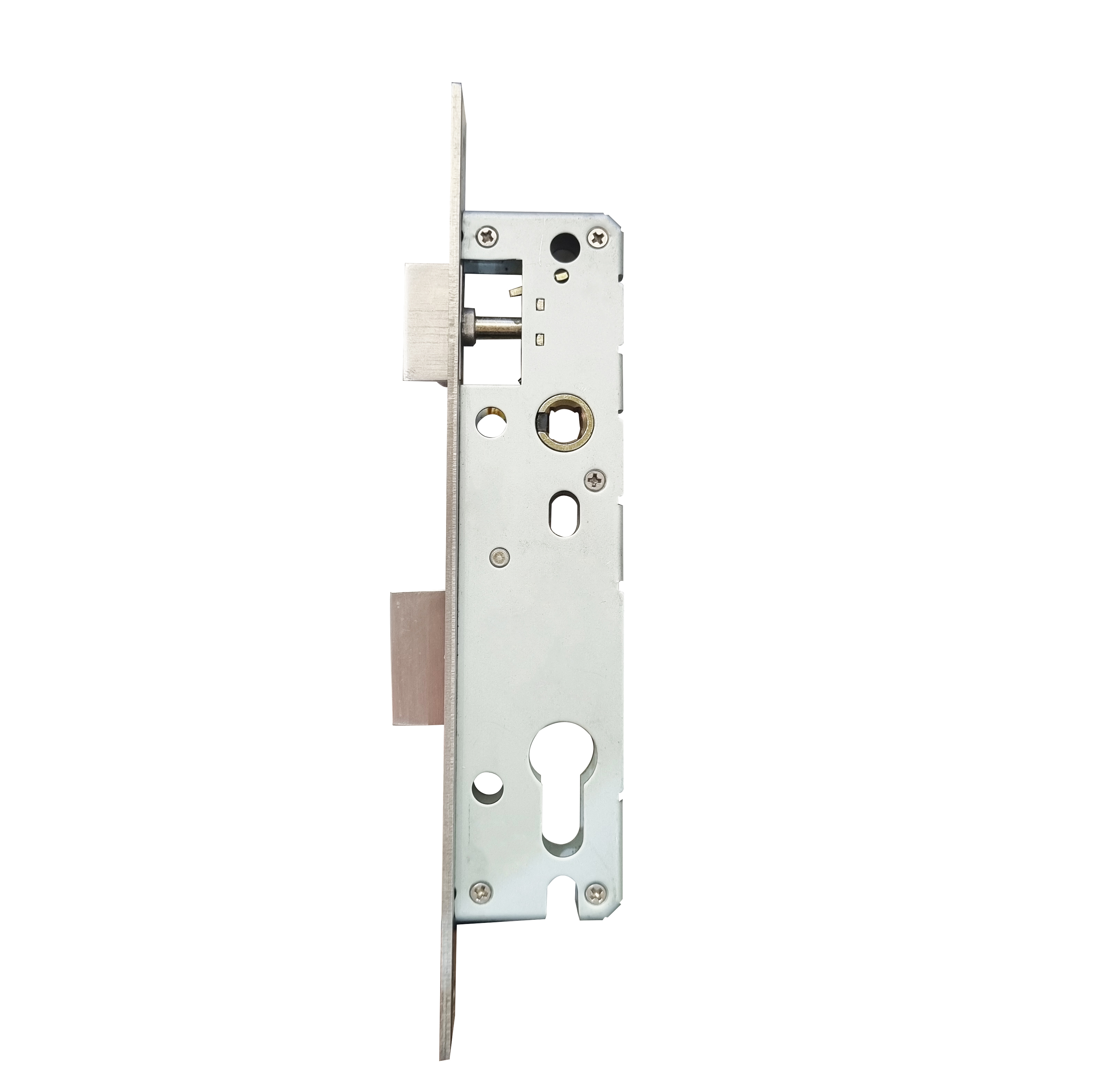

This type of locking mechanism has both a deadbolt and latch.
Backset is 30mm.
CC distance 72mm (Handle to Keyway).
Deadbolt projection is double throw, 16mm.
Wood cut is 50-55mm (pocket dept)
Opening is non-handed.
Specification is DIN 1825-1, Class 3
Material :
- latch and deadbolt (Stainless Steel #304)
- Faceplate and strike plate (SS #304)
- Zinc Plated steel case
