| SIZE: 308MM X 146MM X 80MM |

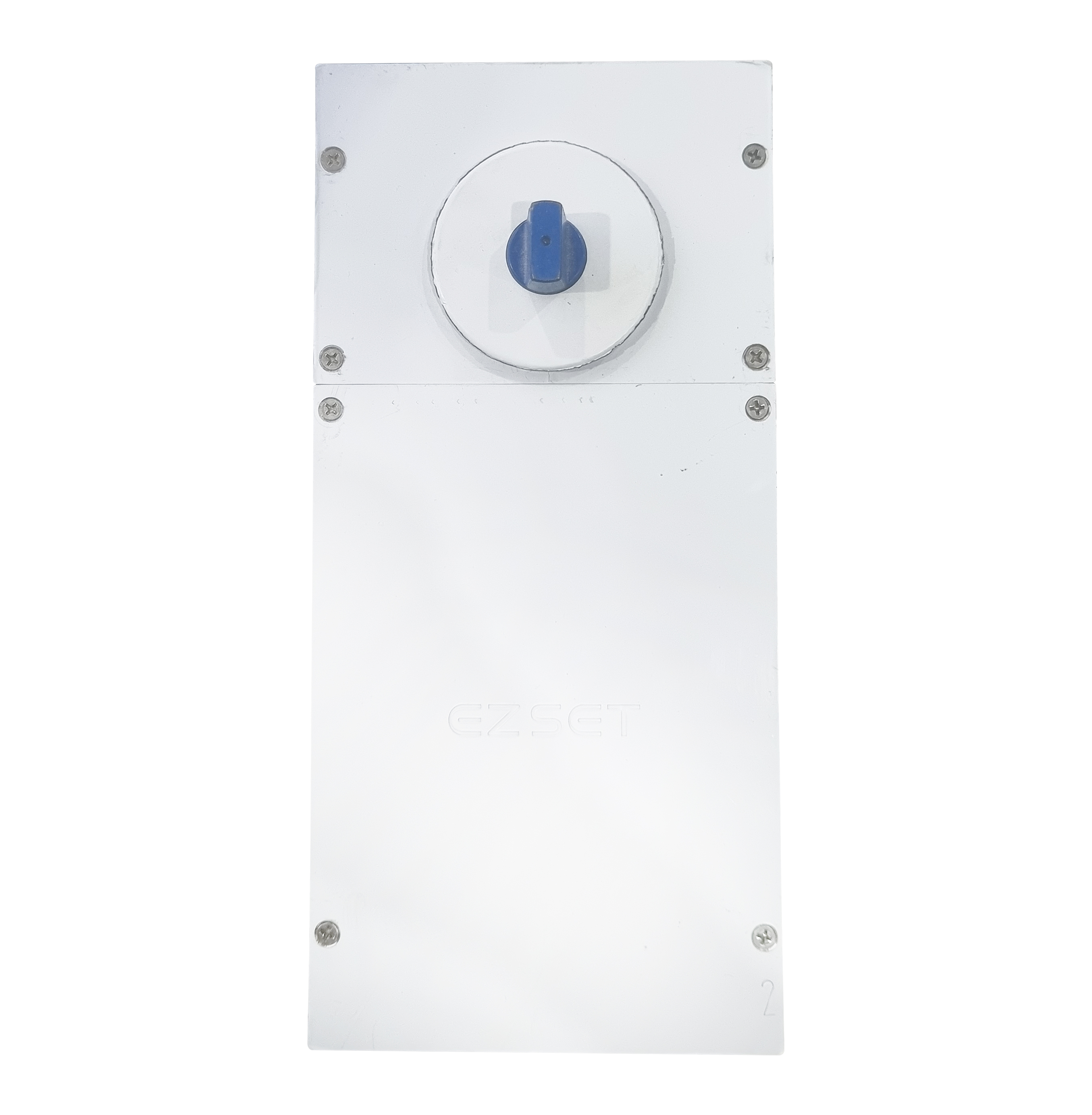

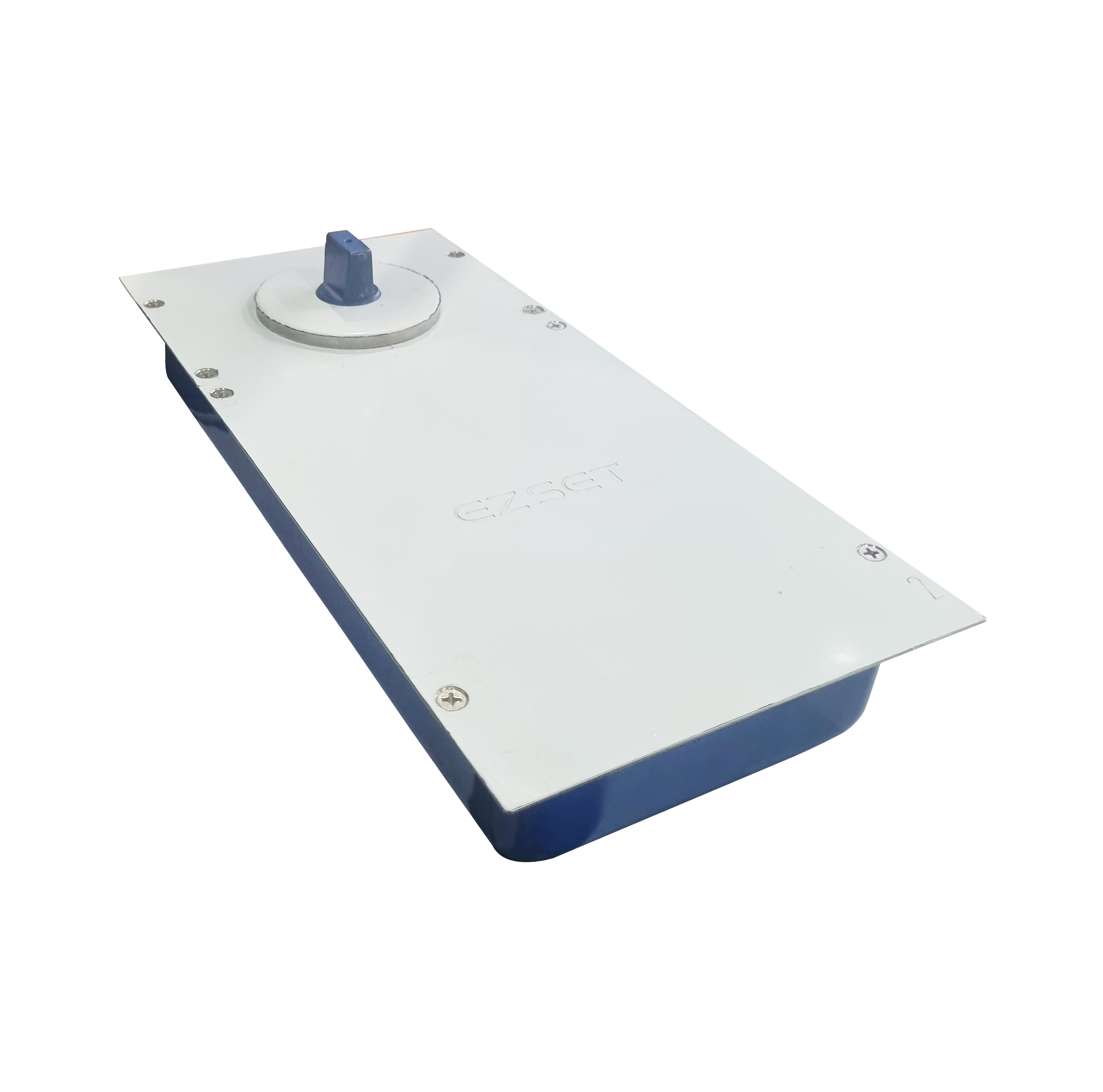

Type : EZSET Floor Hinge ( European Series)
Available Size : 108mm (W) x 307mm(L)x 40mm OH (Box dimension)
Color : Brushed Stainless Steel Cover
Available Material : Stainless Steel #304 Cover
Specification :
Max Opening Angle :130 Deg
Latching Angle :15 Deg
Stop Angle :90 Deg

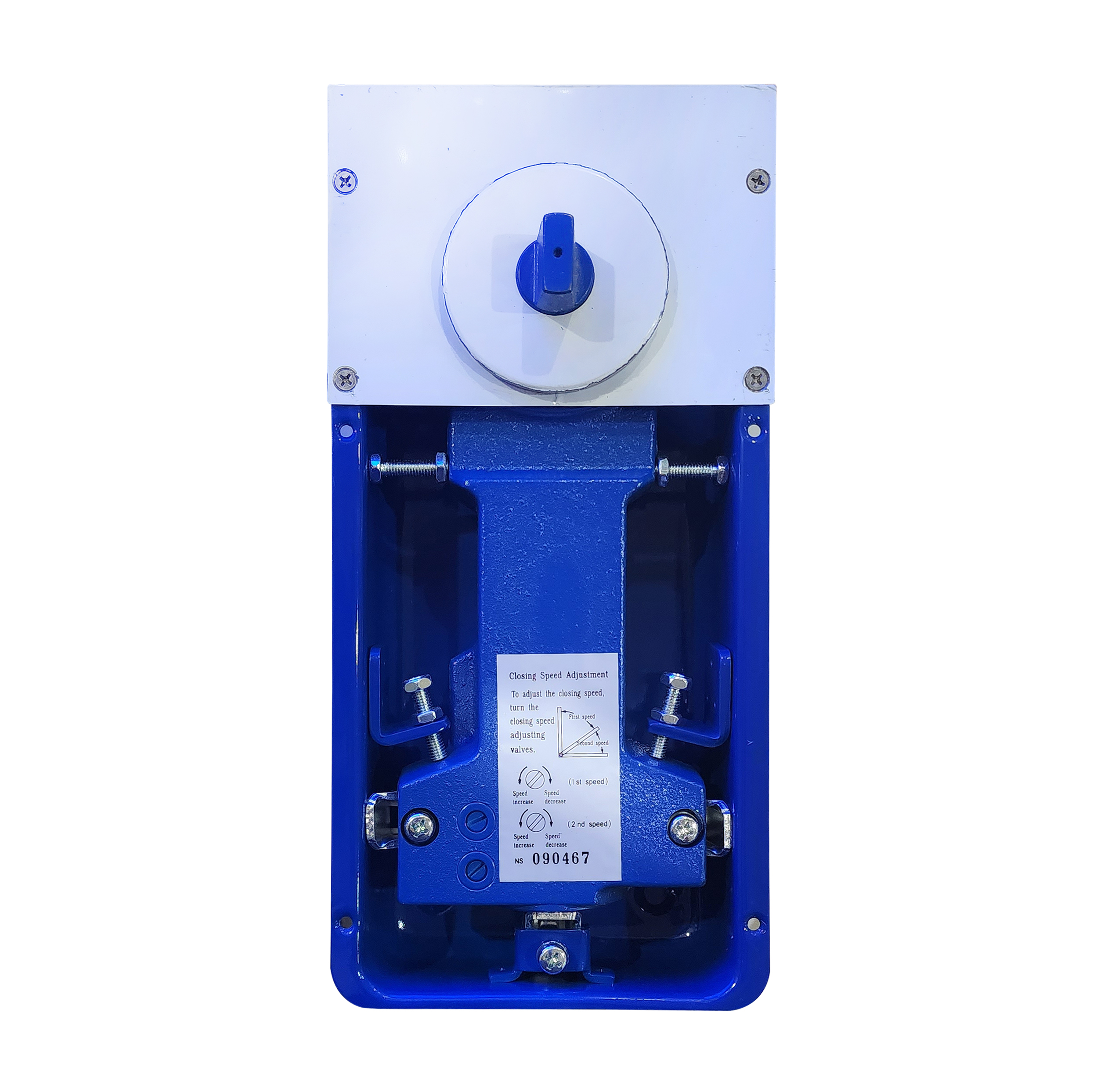

Speed Control : Independent Stage control
Capacity :60kg ax
Working temperature : -40~+60 C
Max Door Width :850MM
Bracket Option :Optional Center Pivot or Off Center Pivot
